Features:

【High quality material, durable and long-lasting】solar clamps are made of aluminum alloy, lightweight, high load capacity and corrosion resistance, suitable for various outdoor environments. stainless steel screws have the advantages of rust and corrosion resistance. And the rubber mat made of EPDM material has good waterproof performance.

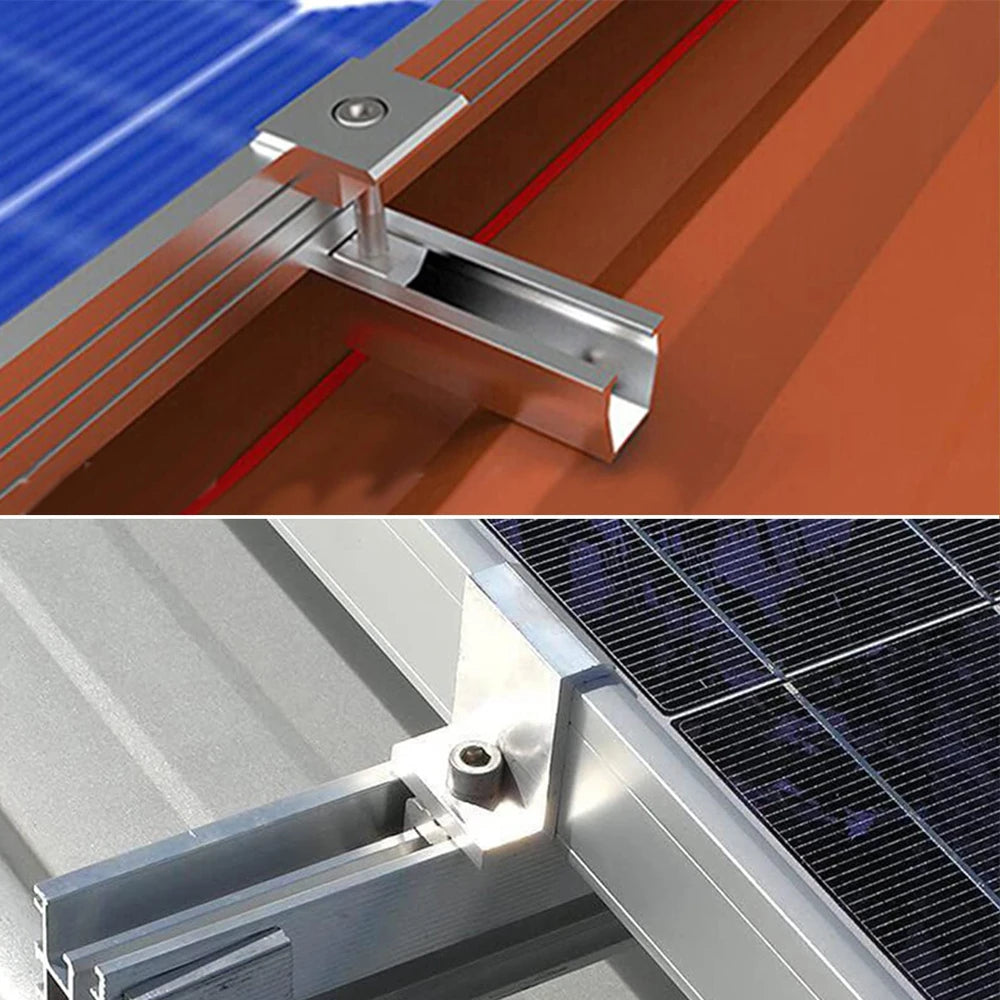

【Easy to install】Z-type, easy to install, save time and effort. These solar panels create a strong connection between the panels. Simply install them at the destination to save installation time and effort. Photovoltaic modules are fast, economical and easy to install. This type of installation reduces the impact of the weight of the PV system on the suction of the roof covering.

【Innovative three-hole end clamp】The Z-shaped edge clamp is divided into long end and short end, and 3 fixing holes are pre-drilled. A variety of sizes are available, suitable for 30-35mm/1.18-1.38 inch solar framed panel.

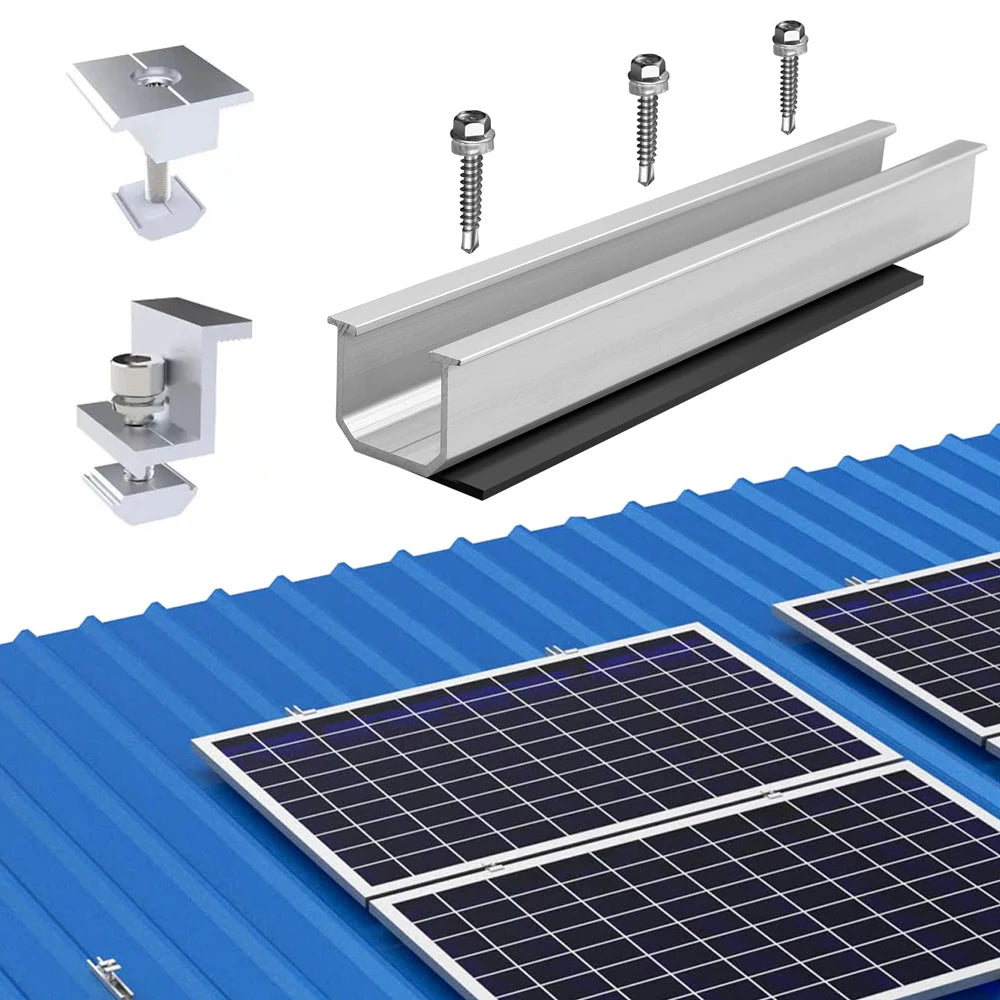

【Wide applications】 Suitable for most home, RV and marine solar panel installations, you can install solar panels on flat and pitched roofs made of tiles, asphalt shingles, ceramic tiles, slab shingles and standing seam boards. Provides toughness to withstand extreme weather conditions.

Description:

Material: Aluminum alloy
Color: Silver

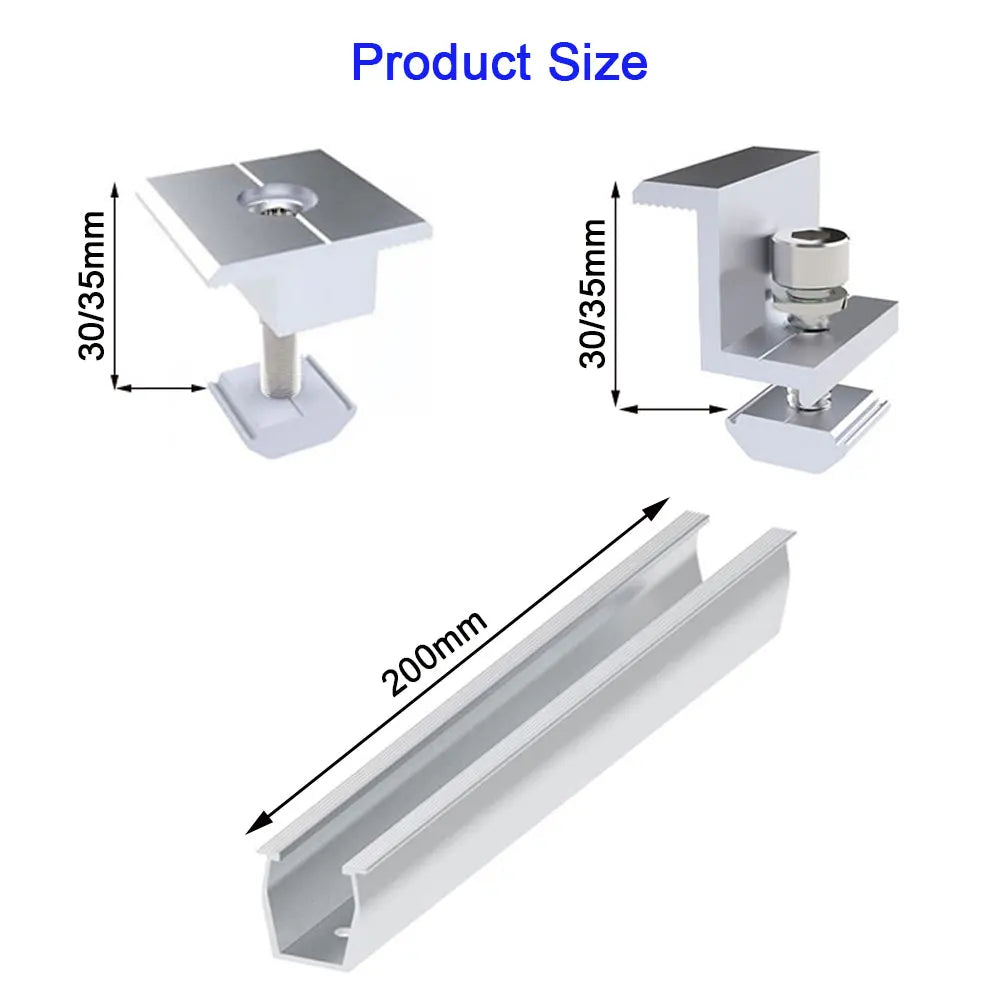

Specifications: 2 rails + 2 middle clips, 4 rails + 4 end clips
Rail size: 200mm

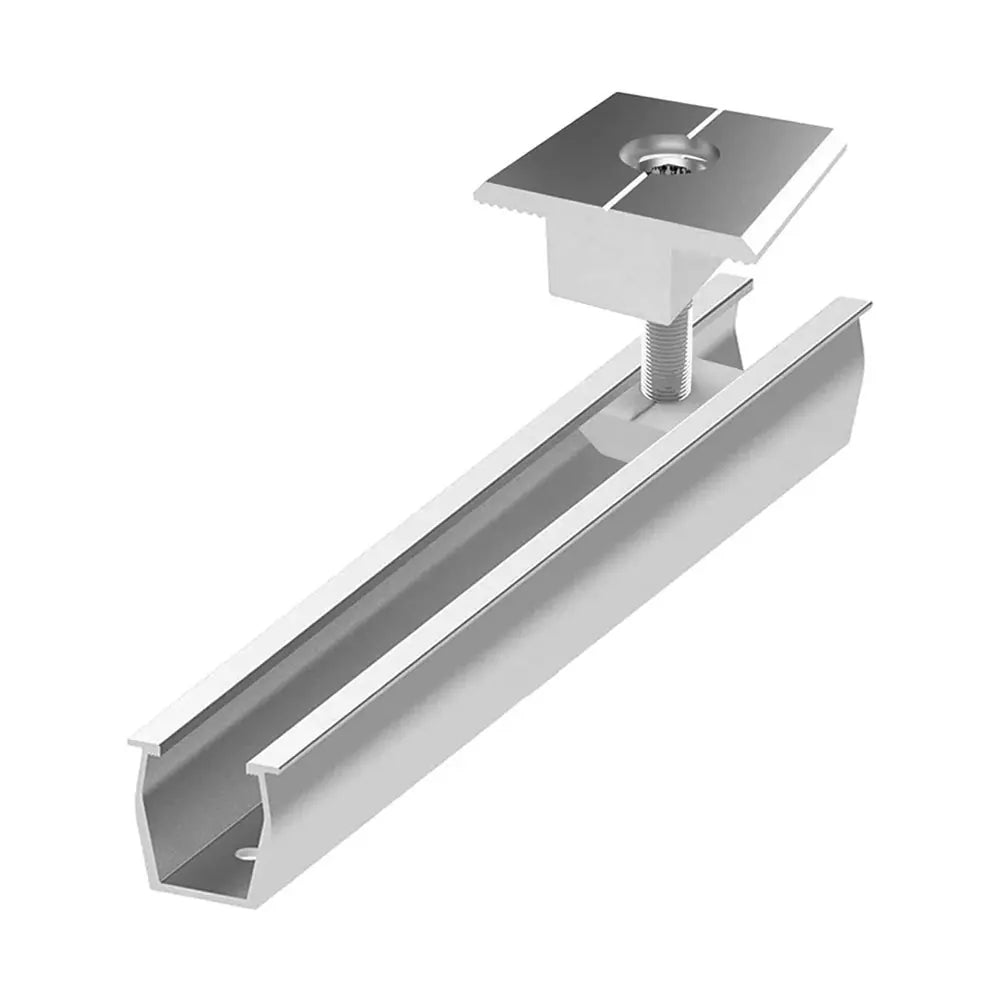

Middle clip: for solar panel 30mm or 35mm
End clips: for 30mm or 35mm solar panels

For 1 solar panel, you only need【4x rail + 4x end clamp】

For 2 solar panels, you need 1x【4x rail + 4x end clamp】+ 1x【2x rail + 2x middle clamp】

For 3 solar panels, you need 1x【4x rail + 4x end clamp】+ 2x【2x rail + 2x middle clamp】

For 4 solar panels, you need 1x【4x rail + 4x end clamp】+ 3 x【2x rail + 2x middle clamp】

For 5 solar panels, you need 1x【4x rail + 4x end clamp】+ 4x【2x rail + 2x middle clamp】

For 6 solar panels, you need 1x【4x rail + 4x end clamp】+ 5 x【2x rail + 2x middle clamp】

For 7 solar panels, you need 1x【4x rail + 4x end clamp】+ 6 x【2x rail + 2x middle clamp】

For 8 solar panels, you need 1x【4x rail + 4x end clamp】+ 7 x【2x rail + 2x middle clamp】

Note: The middle clip and end clip are purchased in sets of the appropriate size according to the thickness of your solar panel

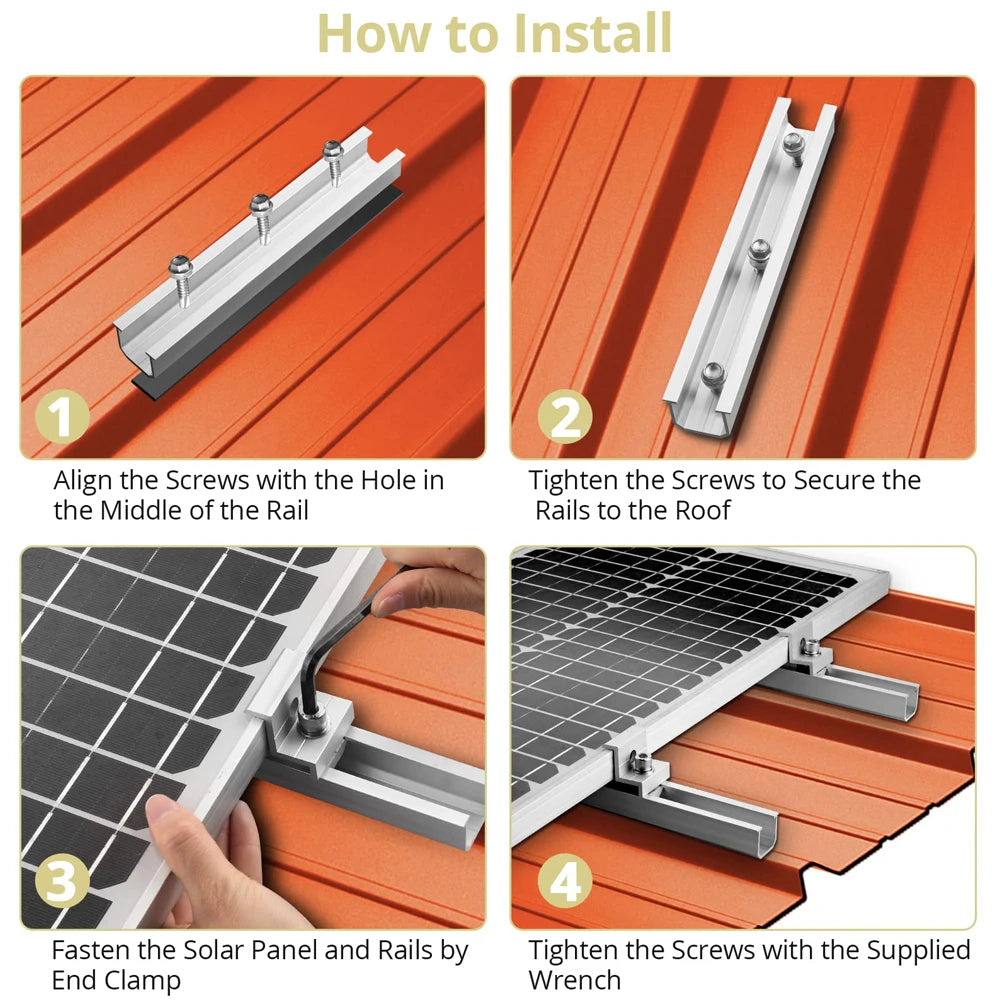

Assembling:

1. The division of the roof depends on the size of the module.
2. Align the first row with chalk lines.
3. Place the bracket in place, pre-drill holes with Ø 5.00 mm sheet metal and secure with 4 blind rivets. Or use a thin sheet metal screw to fix it without pre-drilling.
4. Place the next row with a wooden template and after 10 rows, check the orientation again with a piece of string.

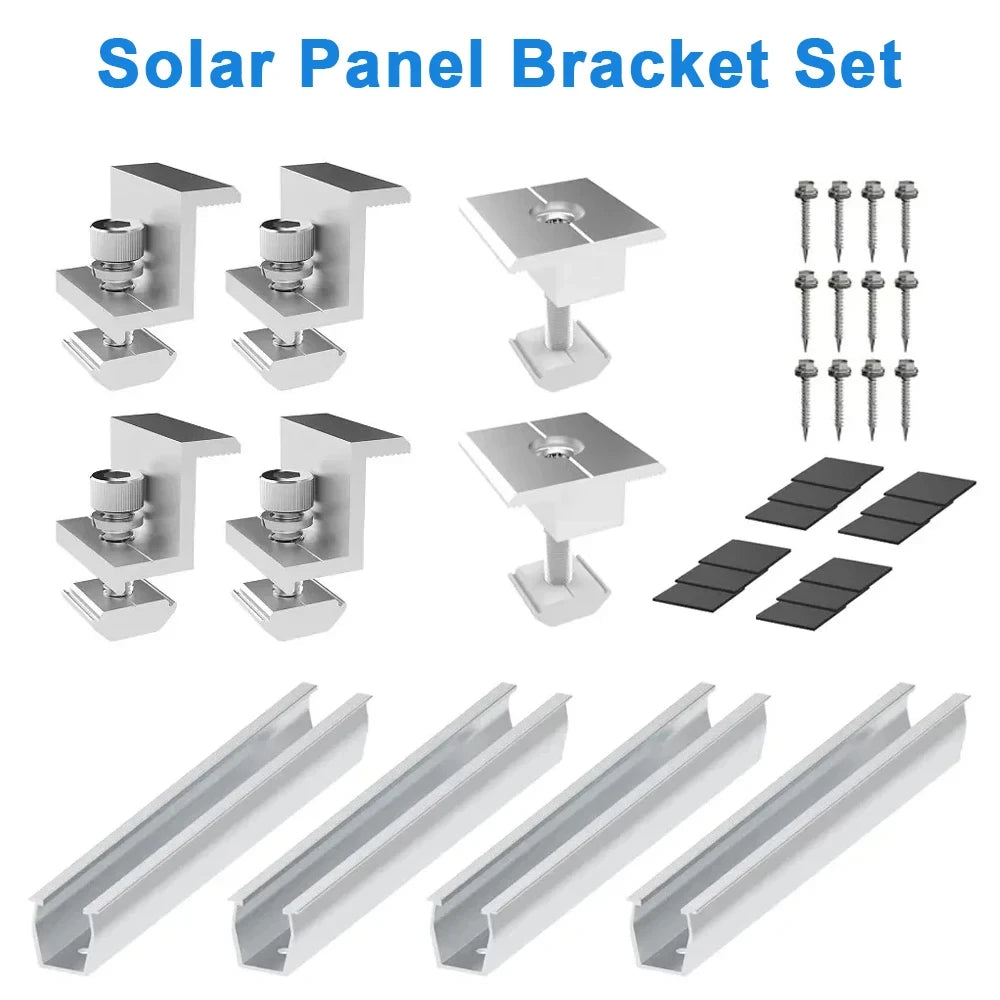

Package Contents:

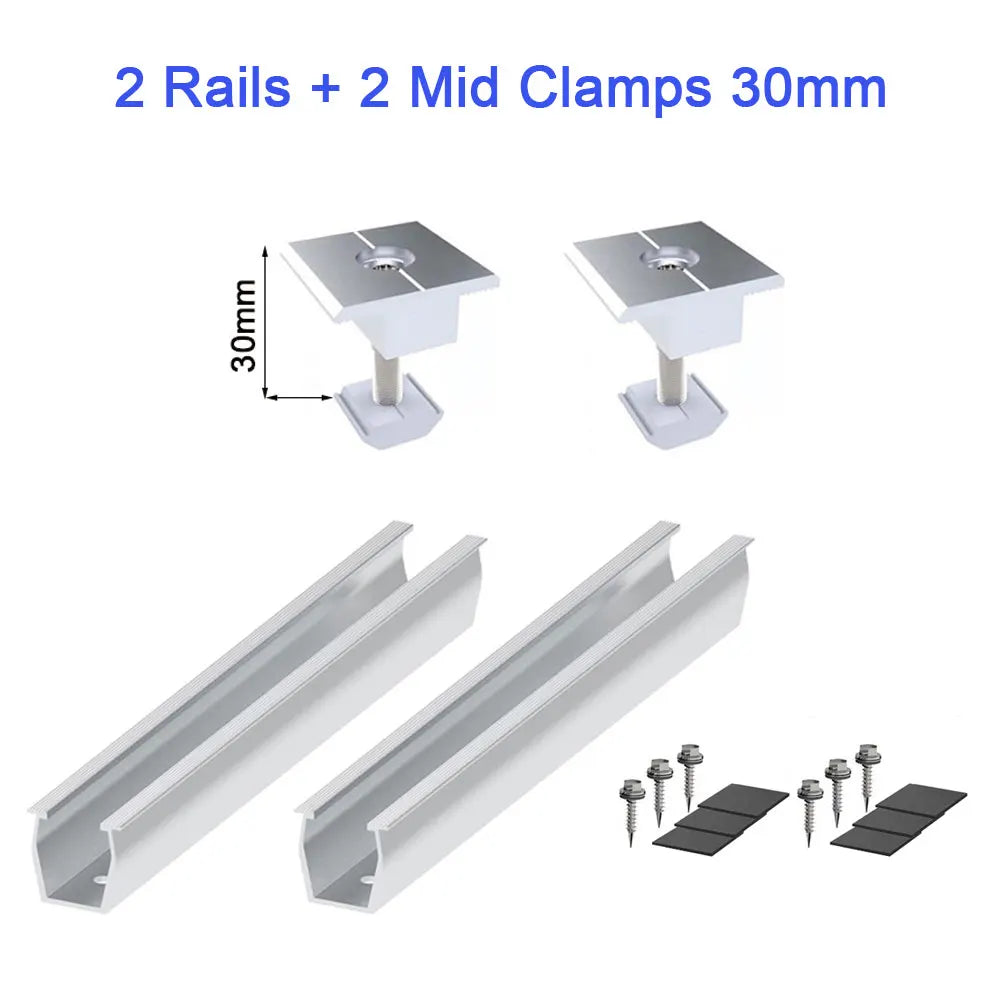

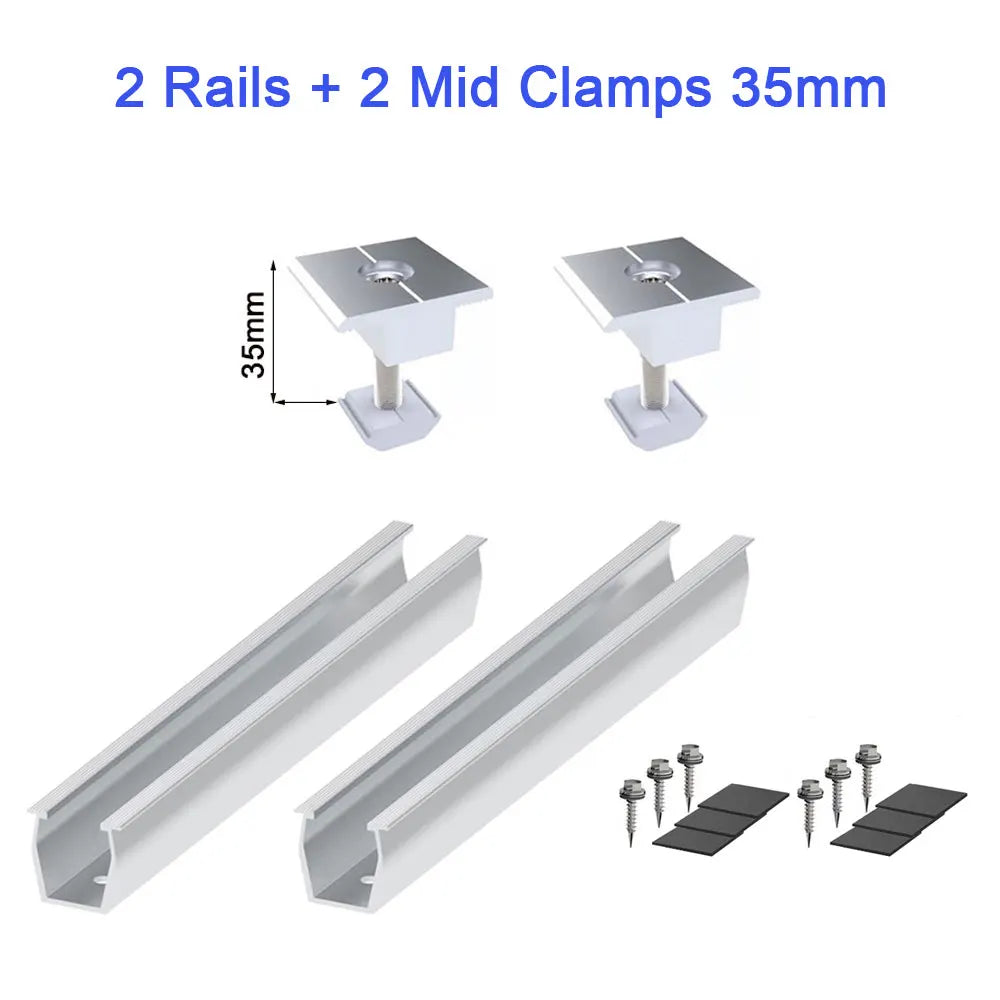

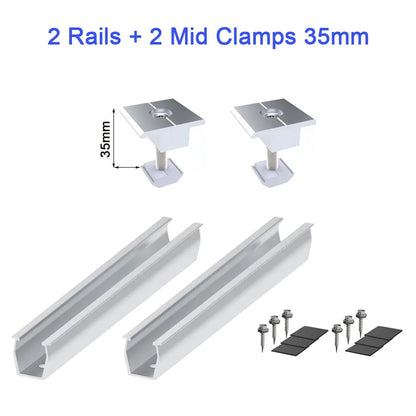

*2 tracks (with accessories gasket + screws) + 2 middle clips

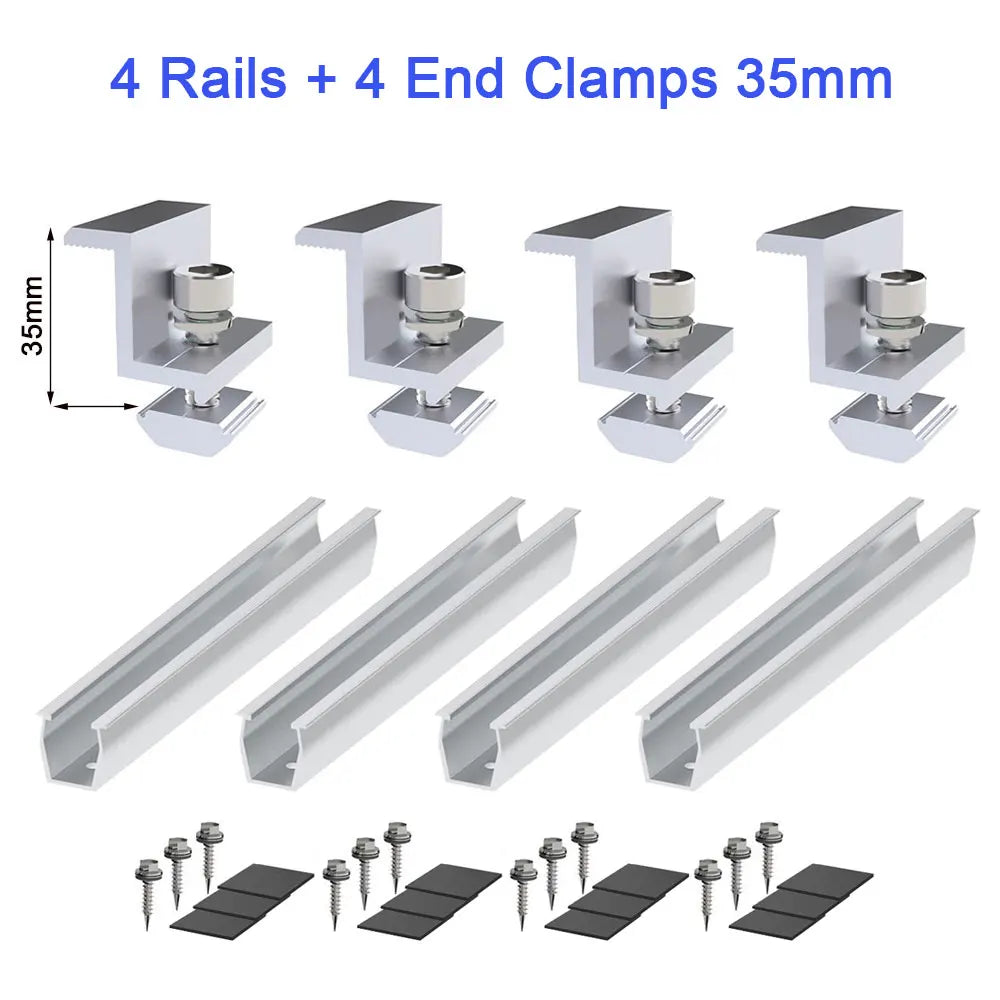

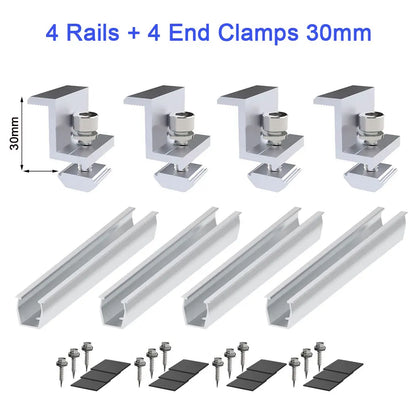

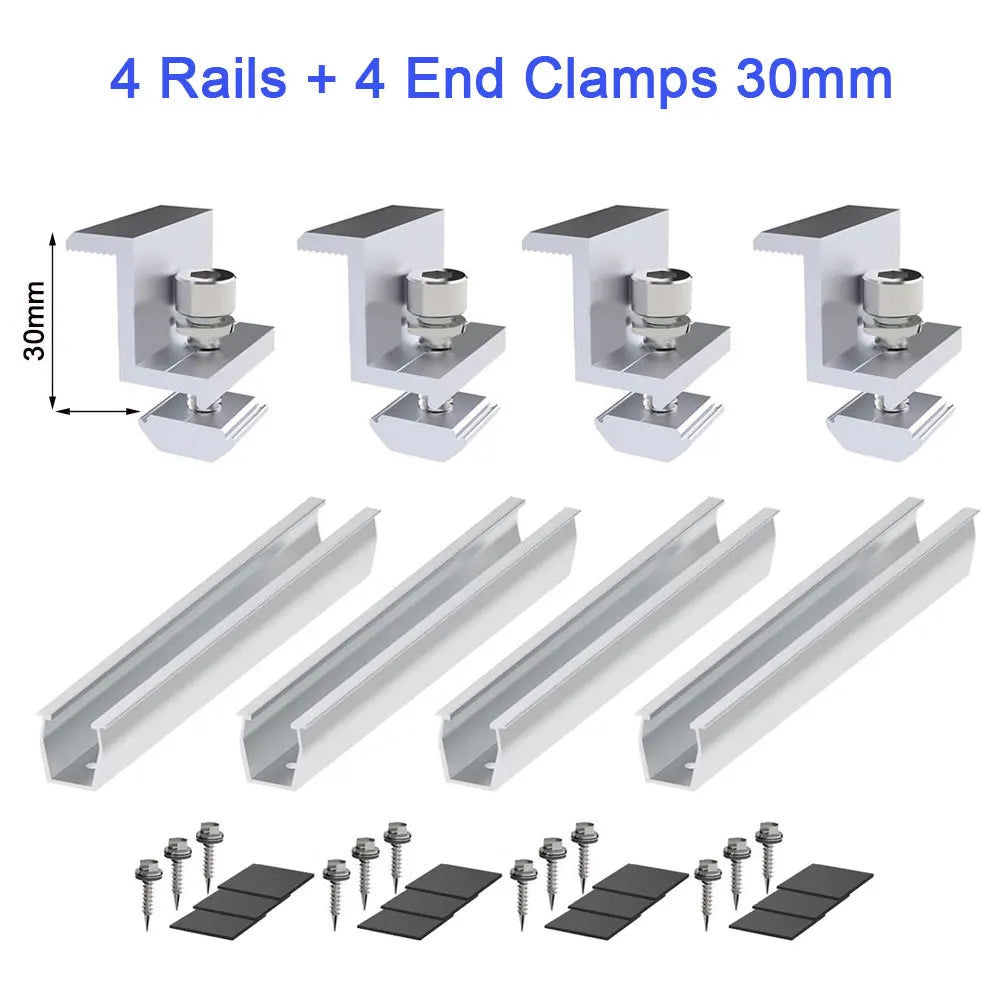

*4 tracks (with accessories gasket + screws) + 4 end clips

Note:

1. Please understand that the product may have slight deviation due to manual measurement.
2. Due to the difference between different monitors, the picture may have a slight deviation from the actual color.
